T07 - EDC & MPC

EDC Connectors are used for the exchange between Input, Computation, and Result nodes of a Multi-Party Computation (MPC) scenario. This use case is an updated version of the Tutorial 06. In particular, the scenario contains a new concept DS-AAS DT, which is an AAS DT integrated with Data Space connector. The detailed architecture of the use case is presented in the paper “Model-Driven Development of Data Space-Enabled Asset Administration Shell Digital Twins” presented in MDE4SA@ICSA2026.

Requirements

The following components are required:

The following knowledge are required:

  • Understanding of T06 - EDC Connector

  • Basic about Java + Eclipse IDE

  • Basic about AAS

  • Basic about EDC

  • Basic about Docker

  • Basic about Docker Compose

Deployment Instructions

In this example, all software components will be run on a computer; however, it is possible to run them in different machines with extra configurations. After downloading the T07 Kit, decompress it to get the ten packages:
(1) factory_v0.1.tar.gz contains the Docker image to run factories,
(2) aas_factory_vI1.tar.gz contains the Docker image to run input node I1,
(3) aas_factory_vI2.tar.gz contains the Docker image to run input node I2,
(4) aas_factory_vI3.tar.gz contains the Docker image to run input node I3,
(5) mpc_c1.1.tar.gz contains the Docker image to run compute node C1,
(6) mpc_c2.1.tar.gz contains the Docker image to run compute node C2,
(7) mpc_r1.1.tar.gz contains the Docker image to run compute node R1,
(8) mpc_edc.tar.gz contains the Docker image to run EDC connector for R1,
(9) docker-compose.yml contains the docker-compose script, and
(10) T07-Factory.zip contains the AAS information model for DS-AAS DT.

Experiment setup

On the computer, install the Docker image with the following command:

$ docker load -i factory_v0.1.tar.gz
$ docker load -i aas_factory_vI1.tar.gz
$ docker load -i aas_factory_vI2.tar.gz
$ docker load -i aas_factory_vI3.tar.gz
$ docker load -i mpc_c1.1.tar.gz
$ docker load -i mpc_c2.1.tar.gz
$ docker load -i mpc_r1.1.tar.gz
$ docker load -i mpc_edc.tar.gz

In the folder with the docker-compose.yml file, create a result.csv file to store the use case experimental output:

$ touch result.csv

Then, run all docker images using the docker compose with the following command:

$ docker compose up

To verify the running Docker containers, using the command $ docker ps, and
the result should be:

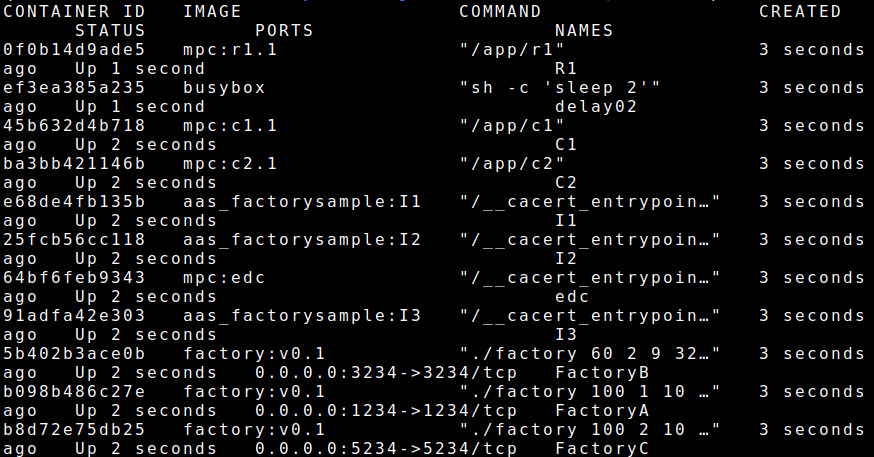

Figure 1. Docker containers are launched using docker compose tool

To verify the monitored result, using the command $ tail -f result.csv, and the result should be:

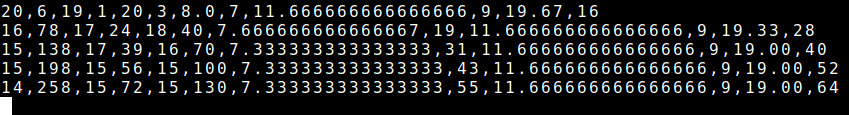

Figure 2. Output result of the use case

Factory DS-AAS DT setup (Optional)

Running with docker compose, then the DS-AAS DTs are already configured correctly. This subsection provides only extra information for users who want to implement DS-AAS DT using Papyrus4Manufacturing.

Extract T07-Factory.zip with the following command:

$ unzip T07-Factory.zip

Open Papyrus4Manufacturing and import the project, users can follow the steps as in T06 - EDC Connector tutorial, except some differences. When a new project AAS_FactorySample is generated, users open the file DynamicElementsWorkspace.java inside the package share1 and modify it as follows.

public Integer get_Share1_number_products() {
    Integer defaultVar = Integer
    		.parseInt(connectedDevices.ep_http.readValue("/number"));
    defaultVar = (int) Math.round(defaultVar * 0.4);
    Cache.properties.put("Share1_number_products", defaultVar);
    return defaultVar;
}

public Integer get_Share1_price() {
    Integer defaultVar = Integer
    		.parseInt(connectedDevices.ep_http.readValue("/price"));
    defaultVar = (int) Math.round(defaultVar * 0.4);
    Cache.properties.put("Share1_price", defaultVar);
    return defaultVar;
}

Also, users open the file DynamicElementsWorkspace.java inside the package share2 and modify it as follows.

public Integer get_Share2_price() {
    Integer defaultVar = Integer
    		.parseInt(connectedDevices.ep_http.readValue("/price"));
    defaultVar = defaultVar - (int) Math.round(defaultVar * 0.4);
    Cache.properties.put("Share2_price", defaultVar);
    return defaultVar;
}

public Integer get_Share2_number_products() {
    Integer defaultVar = Integer
    		.parseInt(connectedDevices.ep_http.readValue("/number"));
    defaultVar = defaultVar - (int) Math.round(defaultVar * 0.4);
    Cache.properties.put("Share2_number_products", defaultVar);
    return defaultVar;
}

It makes the values of share1/share2 are 40/60.
